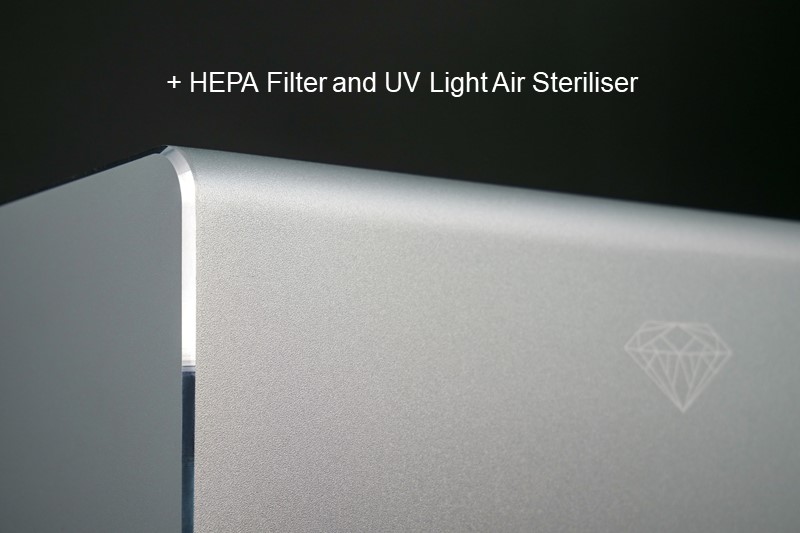

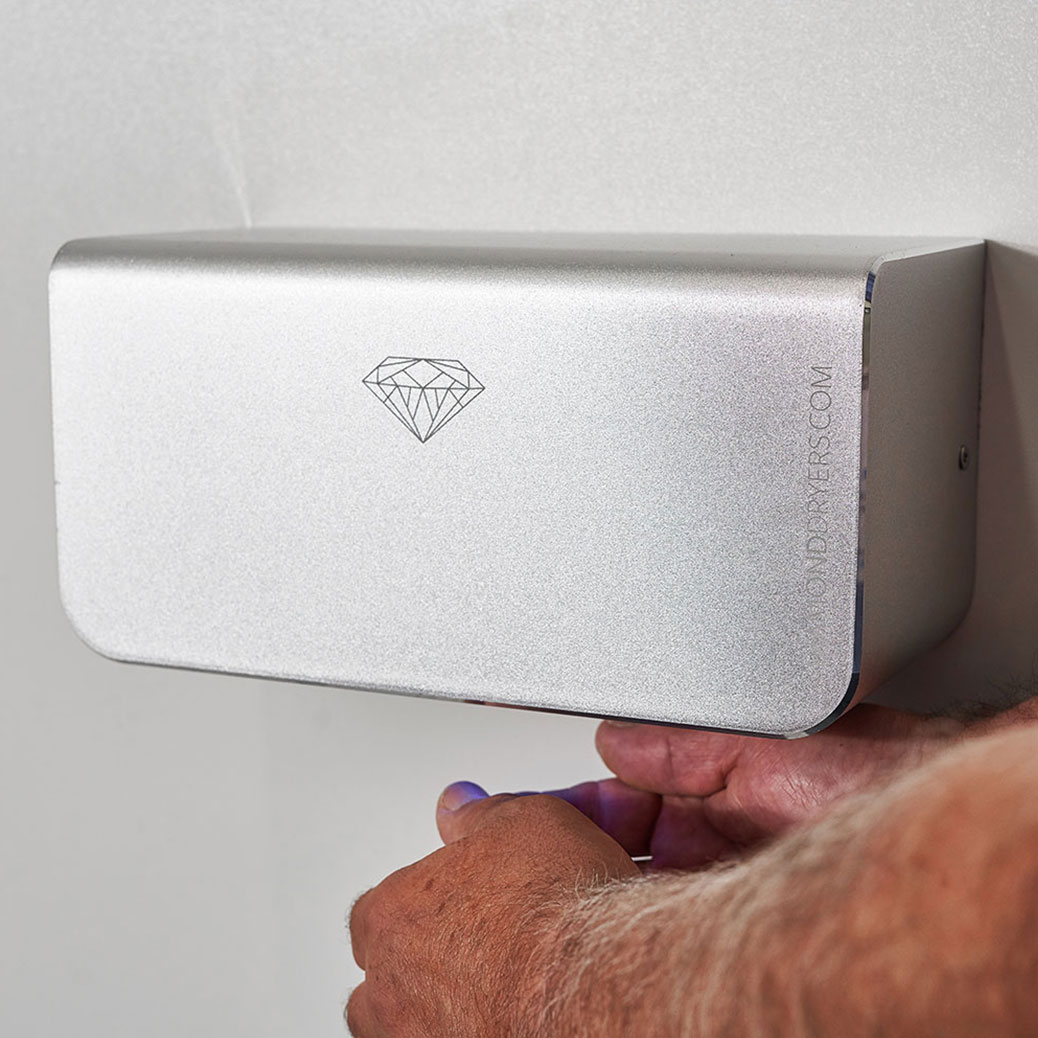

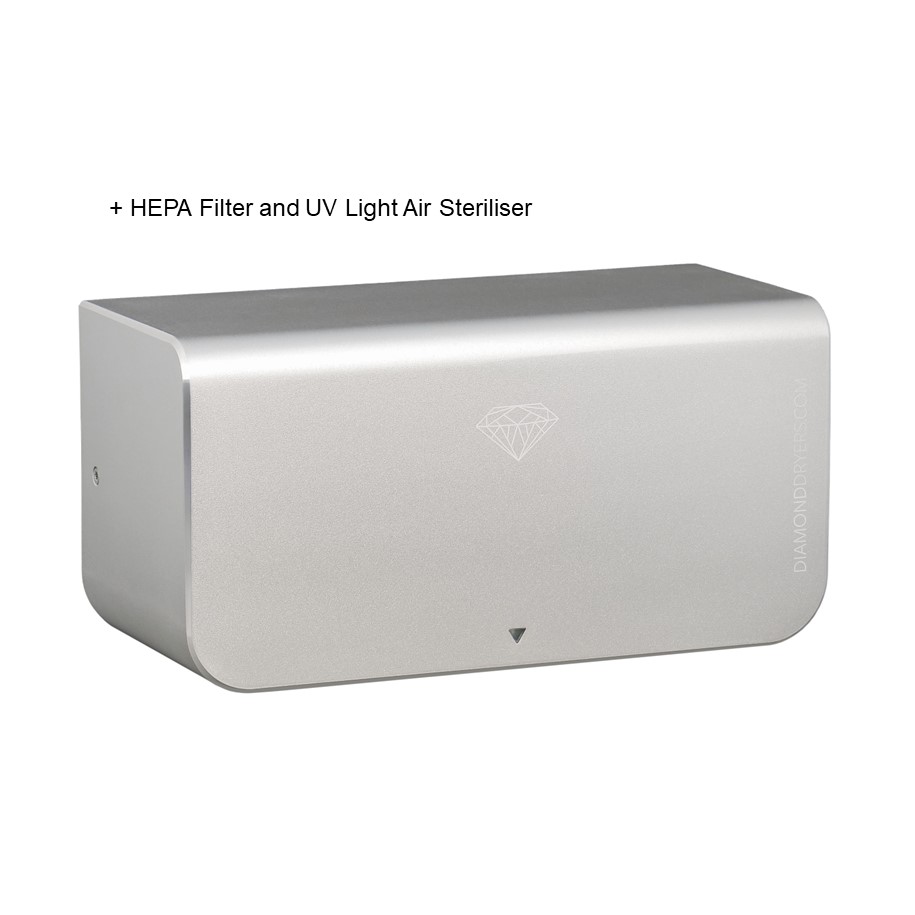

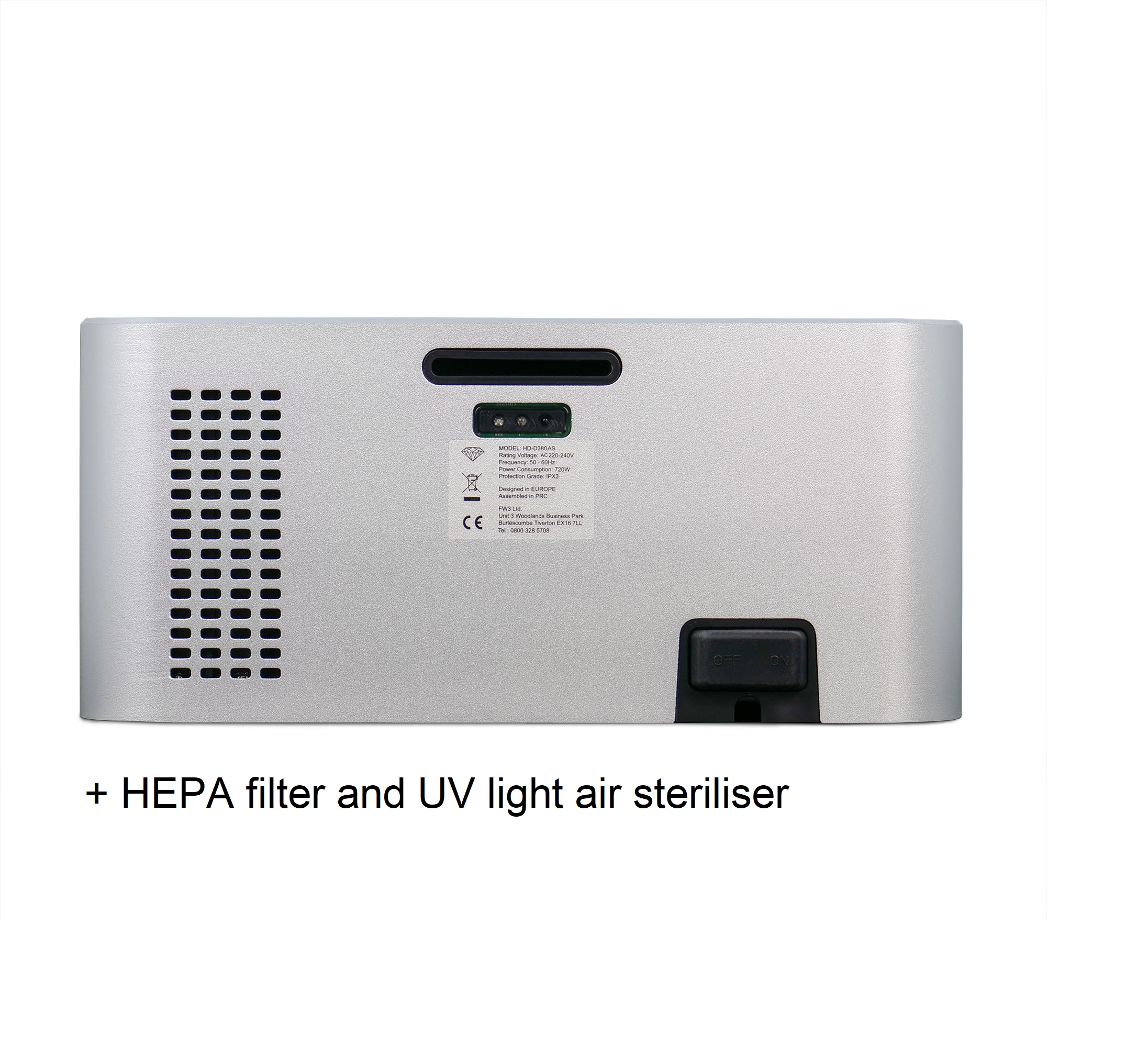

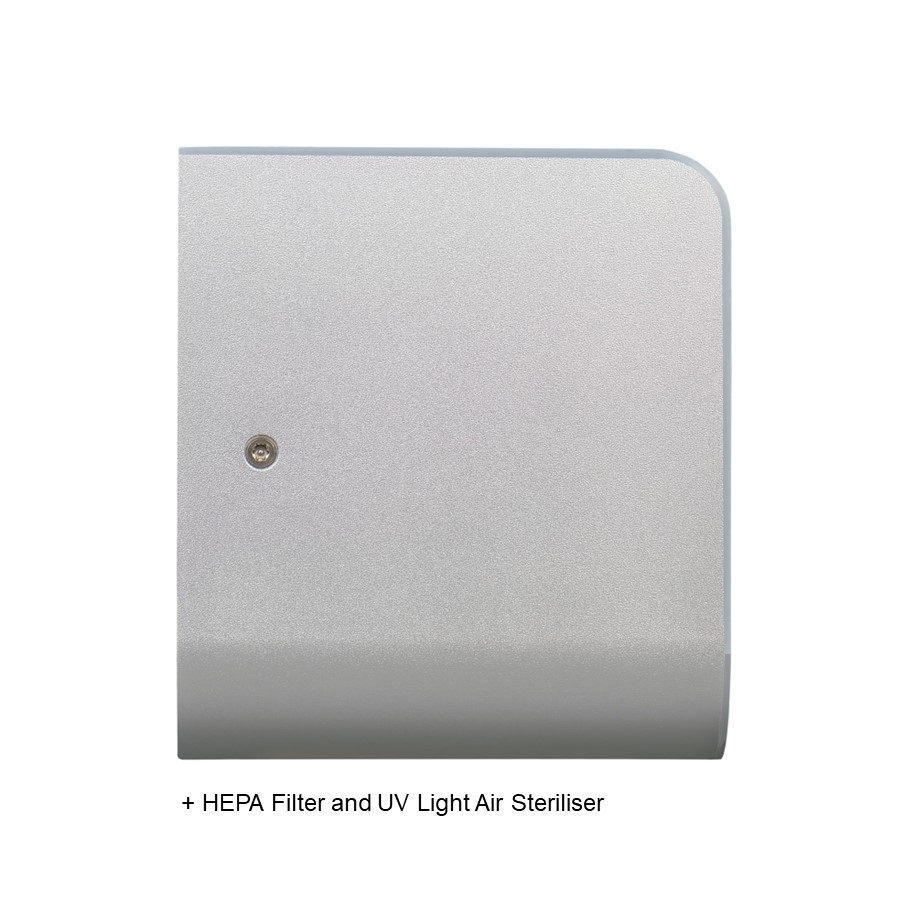

Diamond Dryer PURE with HEPA filter and UV light air steriliser.

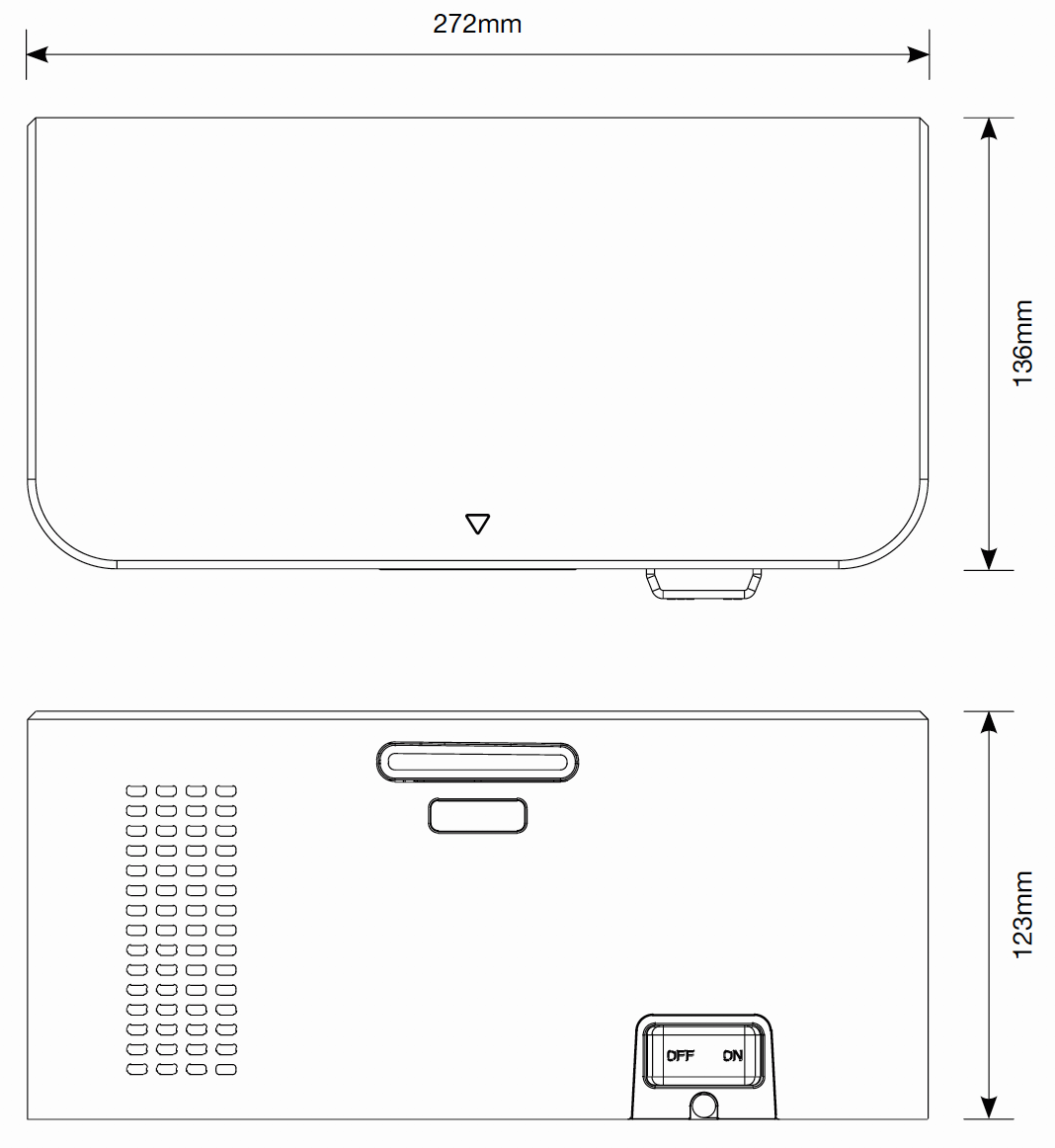

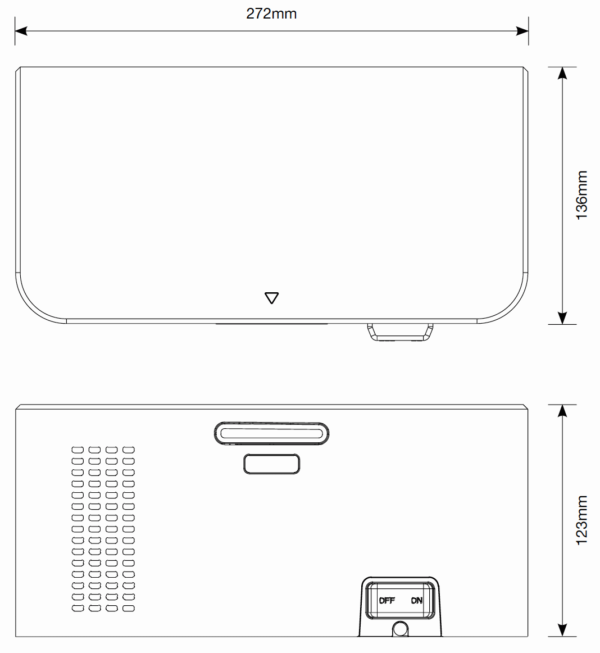

Diamond Dryer Pure hand dryer size and dimensions

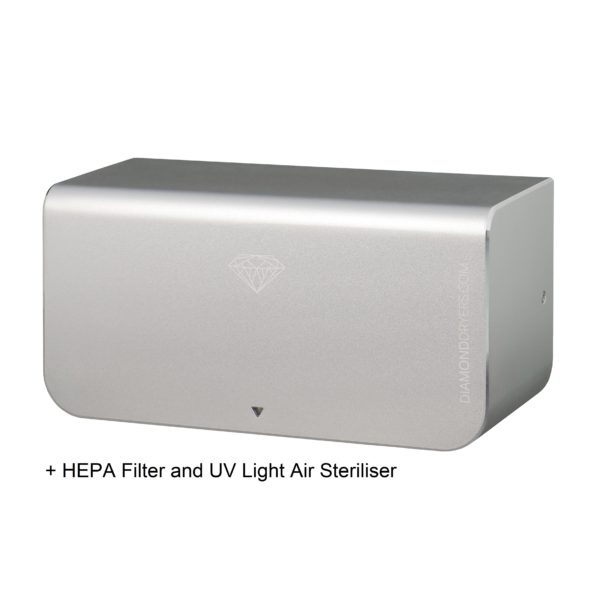

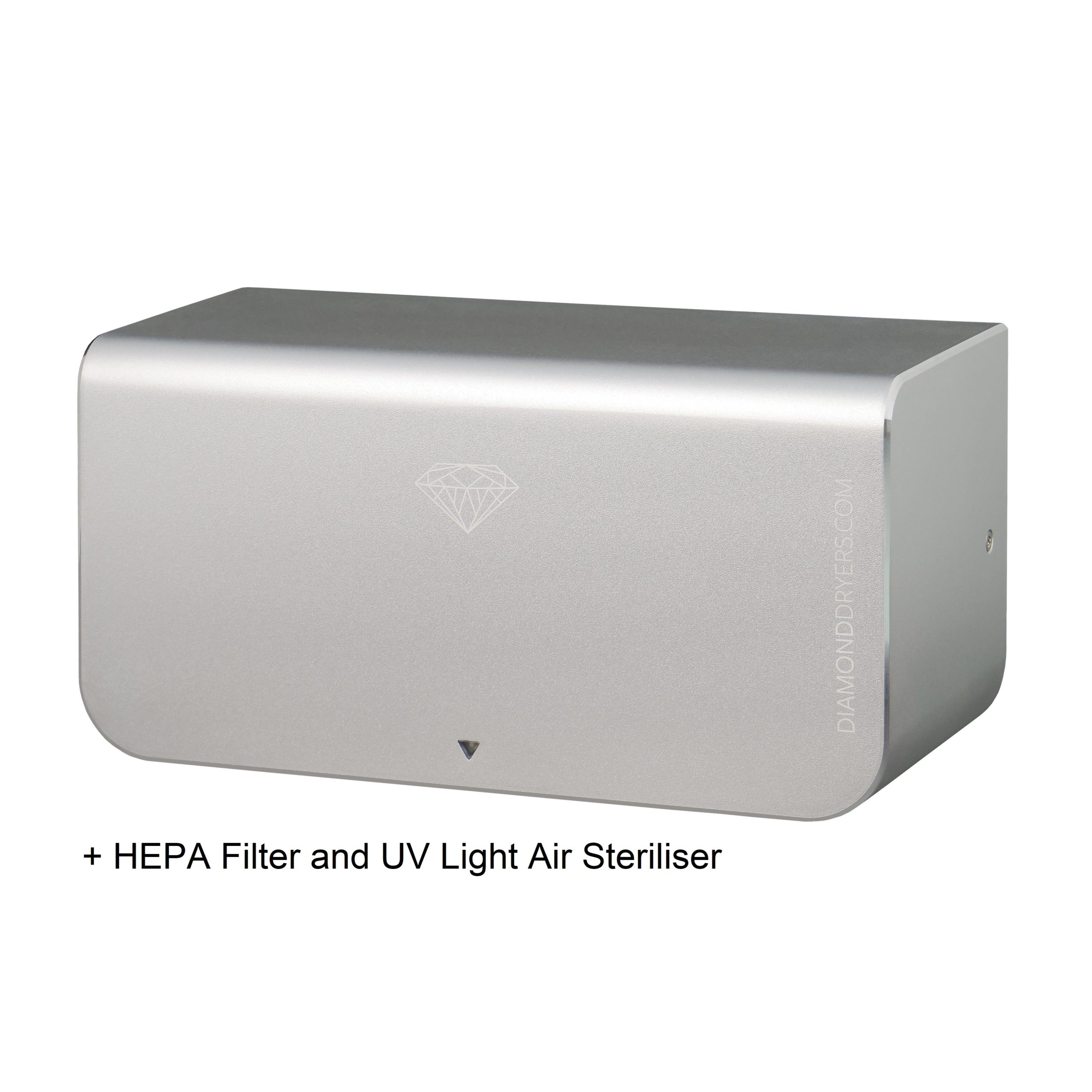

Diamond Dryer PURE

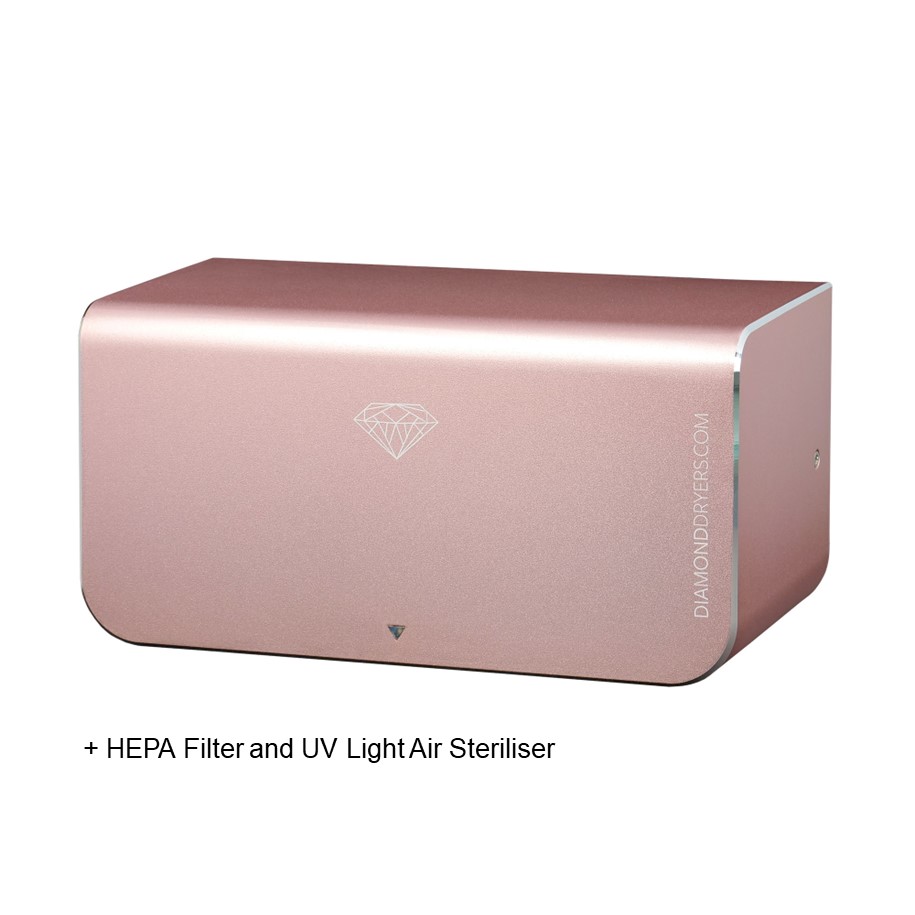

Diamond Dryer PURE Rose Gold

Diamond Hand Dryer PURE - HEPA filter & Air Purification - HD-D380PLUS-S

£279.99 (£335.99 inc. VAT)

  • Slimline air purifying and sterilising hand dryer
  • Compact and powerful, ideal for washrooms with limited space
  • Integrated HEPA filter plus a UV-C light and plasma ion generator which sterilises the air when the dryer is on standby
  • Effectively kills bacteria, germs, and viruses to add another dimension to infection control in washrooms
  • Powerful yet quiet and fast – with just 12 seconds drying time
  • Sleek, stunning design to add a perfect touch in any washroom
  • Ultra low energy (only 320 watts) high speed hand drying

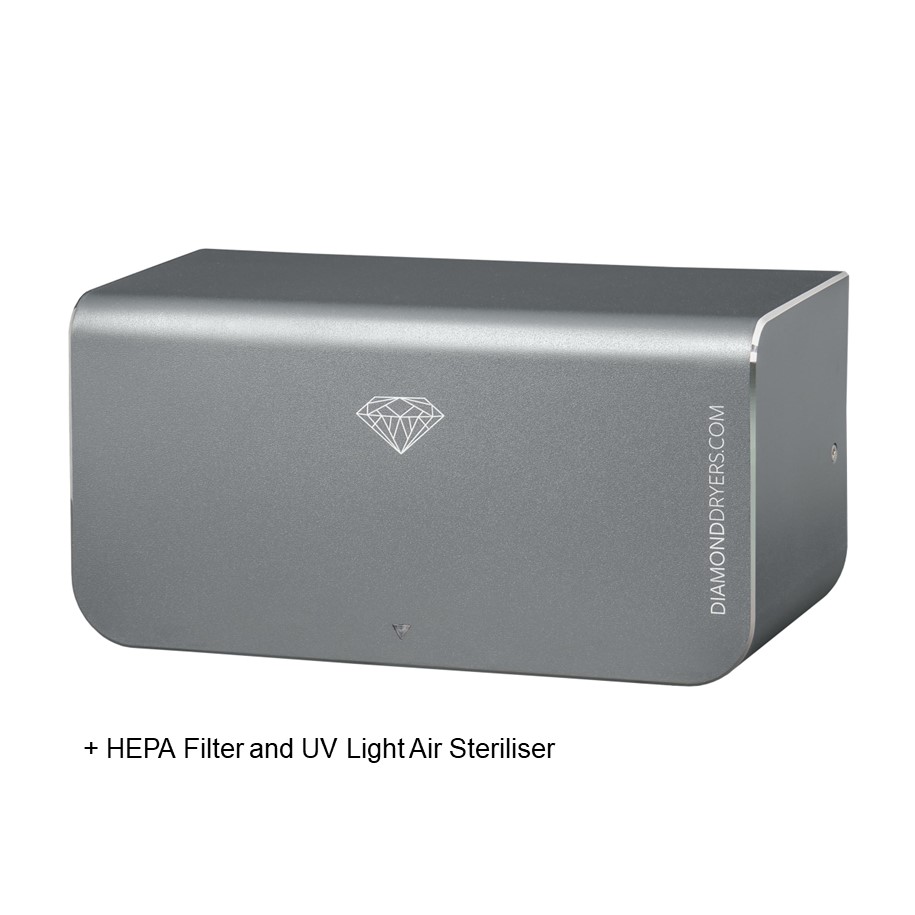

  • Also available in graphite, rose gold and white – please contact us for further details
  • Complete with unrivalled 7 Year ‘peace of mind’ warranty
SKU: D380S-1 Category:
Working on a large project? Contact us for a custom quote.

Description

This ultra low energy, 320W hand dryer works as a dual air purifier thanks to an integrated HEPA filter plus a UV-C light and plasma ion generator which sterilises the air on standby.

Diamond Dryer PURE's effectiveness in destroying bacteria, germs, and viruses adds another dimension to infection control in washrooms. It works in the background to help washroom users and business stay safe.

And with a powerful brushless motor that delivers a short 12 second drying time, it is practical too.

The Diamond Dryer PURE is beautifully designed and compact which makes it ideal for small washrooms. The elegant external appearance is also highly durable, reflecting the quality of the complete dryer, which is why it comes with a fantastic 7-year warranty.

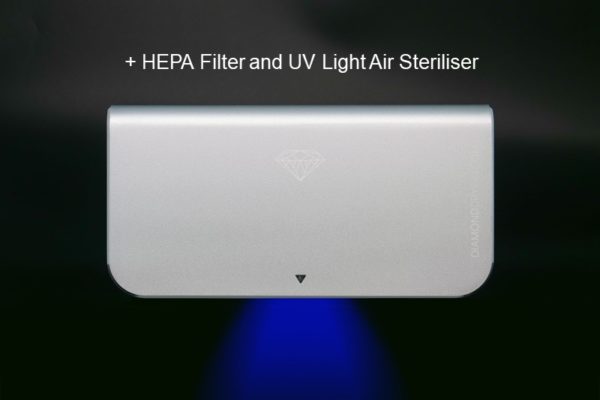

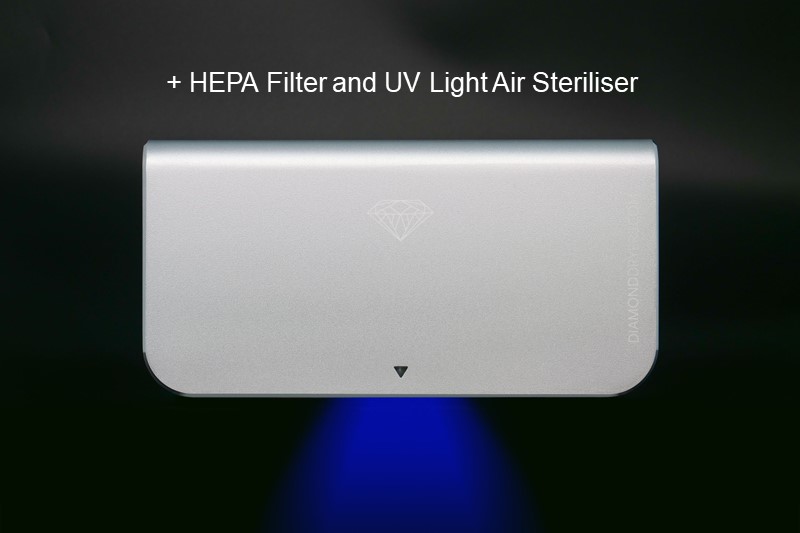

Long term visual appeal is maintained thanks to an anodised finish which provides more resistance to scratches, corrosion and general wear and tear. Its finish, with a diamond cut edge in a contrasting colour and blue LED light when in operation makes the Diamond Dryer PURE a superb addition to any washroom.

Technical Specifications

Rated Voltage AC 220-240 v
Frequency 50/60 Hz
Rated Power 320 W
Standby Power ≤ 0.5 W (satisfied by Blue Angel regulation)
Sensor Type Auto infrared touch free operation
Sensor Range 45° 10-12 mm
Motor Type Brushless DC motor 300 Watts - Lifetime ≥ 5,000 H (1,500,00 operation times based on 12 sec drying time)
Motor Speed 30,000 RPM
Hand Drying Time ≤12 seconds
Air Speed 99 m/s (356.4 km/h)
Effective Airflow 85 m³/h (50 CFM)
Light Blue LED for pointing air blow range, Red LED for filter replacement alert
Noise Level ≤ 84dB(A) @ 1 metre
Operating Cycle 50 sec (the machine shuts down automatically after 50s)
External Material Aviation aluminium materials Anodizing, 3mm T, brushed
Protection Device Auto reset safety overload against 115°C in motor, 85°C in board
Anti Theft Protection 2 allen lock screws and lock with allen wrench
Internal Material Heatproof PP fireproof 94VO
Internal Lead Wire Temperature resistant 105°C
Heater Yes, switch included on the main board
Filter HEPA Antibacterial Filter
UV Lamp 254nm lamp
Plasma Generator ≥ 100,000 PCS/cm @ 1m, DC 12V
Method of Connecting Wire Terminal Block
Power Switch Yes
Dimensions 272 x 136 x 123 mm
Weight Net: 3.2 kg - Gross 3.8 kg
Approvals CE, GS, RoHs, IPX3
Protection Rating IPX3
Electrical Isolation Class 1
Operating Temperature -10 - 55°C
Operating Humidity 20 - 85%
Installation Note Unit can be hard wired by electrician or used with power cord and plug provided (option)
Exterior Screw Type Two anti-theft lock screws and key wrench
Warranty 7 year guarantee
Packing PE bag, Paper tray, Gift box, Carton
Colours and Codes Silver - HD-D380PLUS-S, Black - HD-D380PLUS-BLK, Rose Gold - HD-D380PLUS-RG, Graphite - HD-D380PLUS-G
Product Code HD-D380PLUS-S

Downloads

Diamond Dryer PURE Brochure 628 KB Download
Diamond Dryer PURE Manual 4 MB Download
