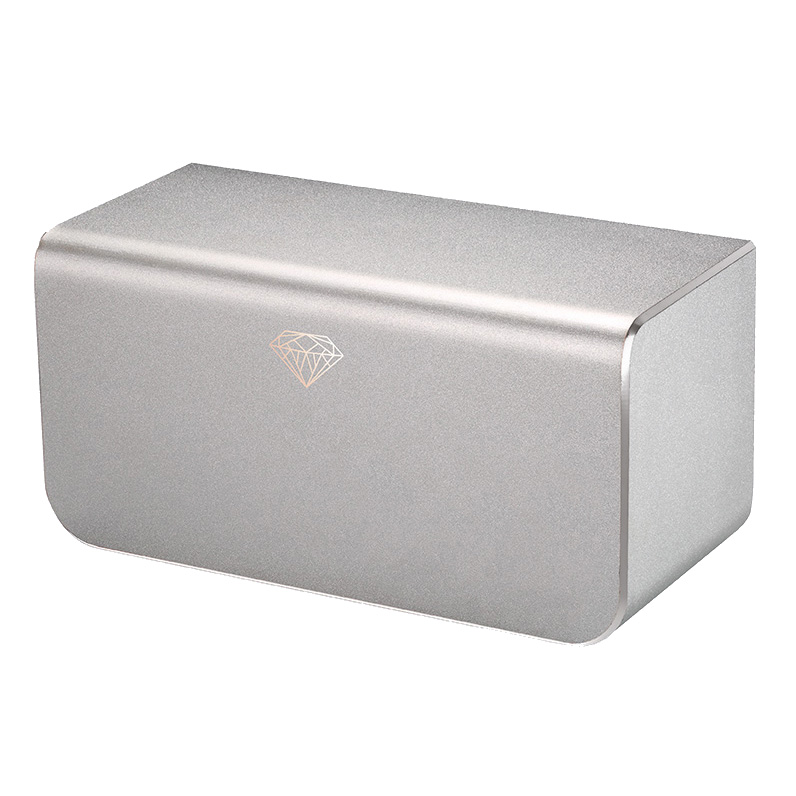

Diamond Hand Dryer - Silver - D380S

£259.99 (£311.99 inc. VAT)

  • Stunning Slimline Design perfect for washrooms with limited space

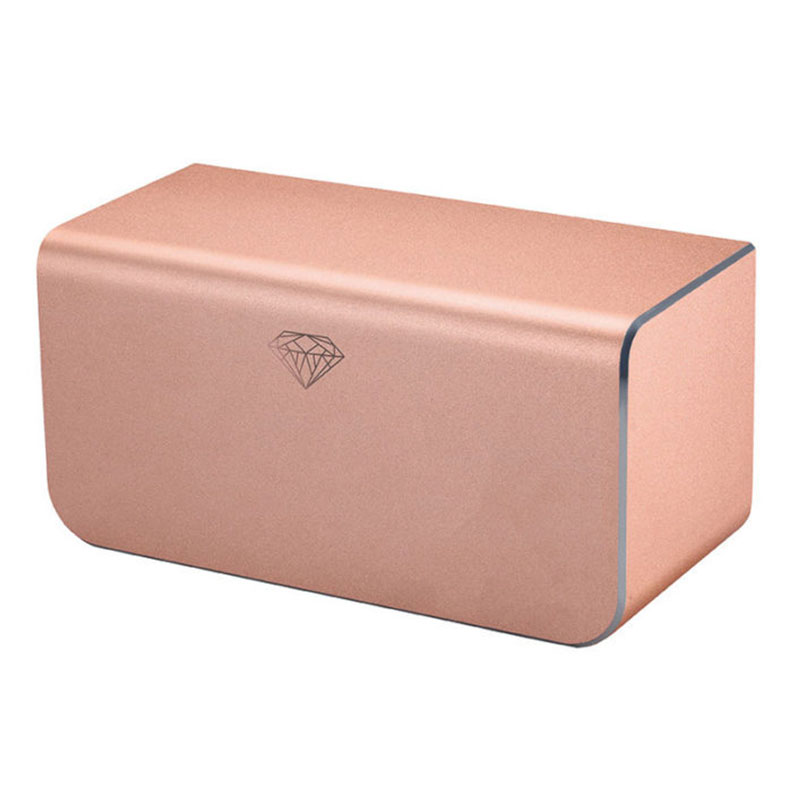

  • Beautiful Rose Gold finish Ladies deluxe colour option
  • Powerful but NOT noisy – 12 seconds drying time
  • Ultra Low Energy (only 300 watts) High Speed hand drying
  • Unrivalled 7 Year ‘peace of mind’ Warranty
SKU: D380S Category:
Working on a large project? Contact us for a custom quote.

Description

Ultra low energy, only 300W. Powerful 10 second drying, compact for small washrooms, elegant stunning design, tough build, fantastic 7-year warranty.

Everything that makes a good hand dryer has been compacted into a small footprint. It has a reduced size with no compromise on performance.

The Diamond Dryer has a uniquely modern finish, which would not look out of place on a top of the range mobile phone. This anodised finish not only looks beautiful, it also increases the durability of the hand dryer making it more resistant to scratches, corrosion and general wear and tear. Finished off with a diamond cut edge in a contrasting colour it is sure to be a talking point in any washroom.

Technical Specifications

Rated Voltage AC 220-240 v
Frequency 50/60 Hz
Rated Power 300 W
Standby Power ≤ 0.5 W (satisfied by blueangel regulation)
Sensor Type Auto infrared touch free operation
Sensor Range 45° 5-12 mm
Motor Type Brushless DC motor 300 Watts - Life time ≥ 5,000 H (1,500,00 operation times based on 12 sec drying time)
Motor Speed 24,500 RPM
Hand Drying Time 10 - 12 seconds
Air Speed 100 m/s (360 km/h)
Effective Airflow 113.04 m³/h (66 CFM)
Light Blue LED
Noise Level ≤ 70dB(A) @ 1 meter
Operating Cycle 30 sec (the machine shuts down automatically after 20 sec and 2 sec delay turn off from last read)
External Material Aviation aluminium materials Anodizing, 3mm T, brushed
Protection Device Protect the main board against over current and over voltage, lightning, over temperature of inside motor, 120 C +/- 5 C and over temperature of main board 85C auto reset safety overload
Anti Theft Protection 2 allen lock screws and lock with allen wrench
Internal Material Heatproof PP fireproof 94VO
Internal Lead Wire Temperature resistant 105°C
Method of Connecting Wire Terminal Block
Power Switch N/A
Dimensions 272 x 136 x 123 mm
Weight Net: 3.2 kg - Gross 3.8 kg
Approvals CE, GS, RoHs, IPX3
Protection Rating IPX3
Electrical Isolation Class 1
Operating Temperature -10 - 55°C
Operating Humidity 20 - 85%
Installation Note Unit can be hard wired by electrician or used with power cord and plug provided (option)
Exterior Screw Type Two anti-theft lock screws and key wrench
Warranty 7 year guarantee
Packing PE bag, Paper tray, Gift box, Carton
Colours and Codes Silver - HD-D380S, Black - HD-D380BLK, Rose Gold - HD-D380RG

Downloads

Diamond Dryer Leaflet 878 KB
Diamond Dryer Manual 8 MB
